At CEN PCBA, we understand the critical importance of designing high-quality, reliable printed circuit boards (PCBs). One often-overlooked feature that plays a significant role in enhancing PCB performance and longevity is the addition of teardrops. These small, yet powerful design modifications are essential for improving the strength, durability, and signal integrity of a PCB, especially in high-performance and mission-critical applications.
What Are Teardrops in PCB Design?
Teardrops are subtle enhancements added to the junction between a PCB trace and a pad or via. Instead of a sharp transition, the trace gradually widens as it meets the pad, forming a teardrop shape. This simple design adjustment strengthens the connection, helping to reduce the risk of structural weaknesses and ensuring the long-term reliability of the PCB.
Why Are Teardrops Important for PCB Reliability?
- Preventing Manufacturing Defects
During the PCB fabrication process, slight misalignment during drilling can weaken the connection between traces and pads, increasing the likelihood of breakage. Teardrops reinforce the transition area, making the PCB more tolerant to misalignment and reducing the risk of manufacturing defects. - Reducing Thermal and Mechanical Stress
PCBs are subject to mechanical flexing and thermal expansion, particularly in high-performance applications like automotive, aerospace, and industrial electronics. These stresses can cause micro cracks at critical junctions. Teardrops help distribute stress more evenly across the PCB, minimizing the risk of signal degradation or failure over time. - Enhancing Signal Integrity and Electrical Performance

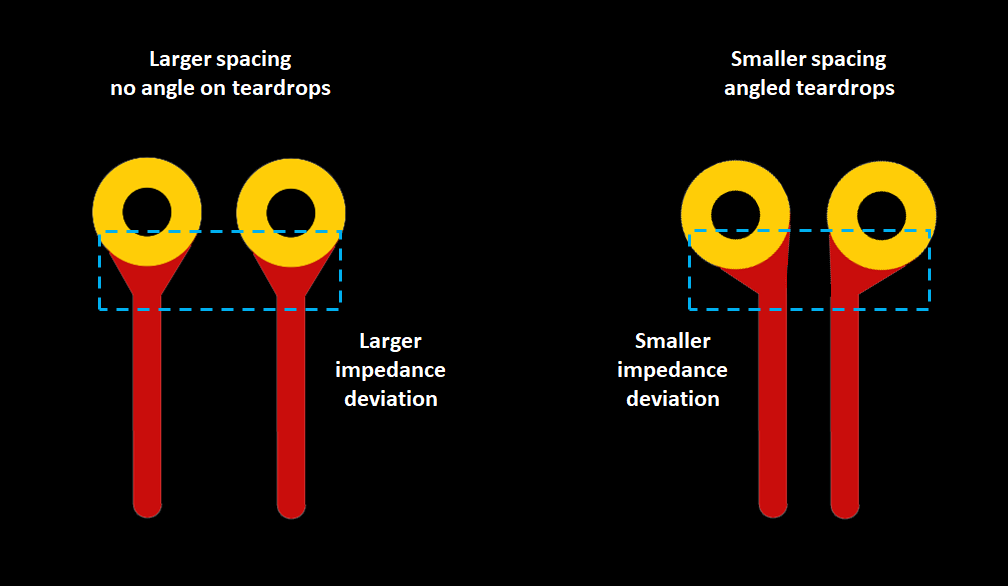

In high-speed circuits, sharp transitions between traces and pads can introduce impedance discontinuities, leading to signal reflection, ringing, and interference. The gradual transition created by teardrops smooths out these impedance changes, improving signal integrity and reducing unwanted electrical issues such as crosstalk.
Teardrops in Different PCB Applications
Teardrops play an essential role in various types of PCBs, including High-Density Interconnect (HDI) boards, flexible and rigid-flex PCBs, and PCBs used in harsh environments.
HDI Boards: As PCB designs become more compact, the traces and pads shrink, increasing the likelihood of defects. Teardrops provide a simple and effective way to reinforce these connections without taking up extra space.
Flexible and Rigid-Flex PCBs: Flex circuits are subjected to constant bending and movement. Teardrops reinforce these critical junctions, helping to prevent trace cracking and ensuring longevity in applications that require flexibility.
Harsh Environment Electronics: PCBs used in military, aerospace, and industrial applications must withstand extreme conditions such as vibration, temperature fluctuations, and mechanical stress. Teardrops help ensure these vital systems remain operational under harsh conditions.
How to Implement Teardrops in PCB Design?

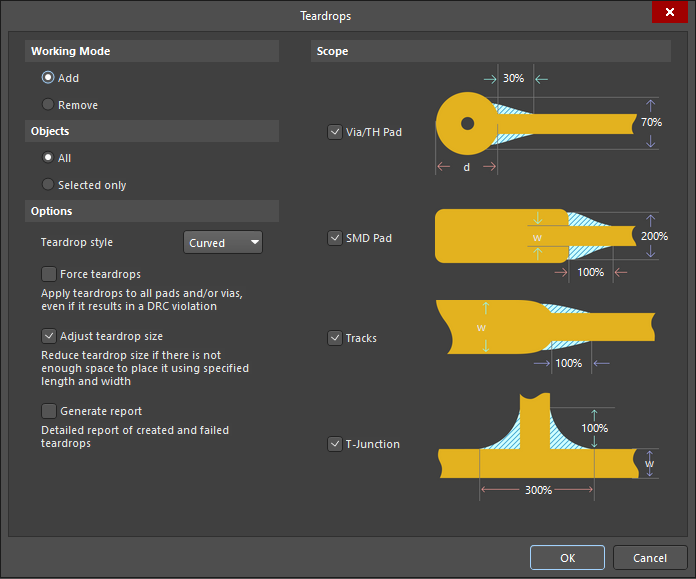

At CEN PCBA, we use the latest PCB design tools to ensure that teardrops are correctly implemented in every project. Most modern PCB design software, including Altium Designer, KiCad, and Eagle, provide automatic tools to apply teardrops. However, to optimize their effectiveness, we recommend the following:
Adjust Teardrop Size Based on Trace Width: Larger traces require proportionally larger teardrops for adequate reinforcement.
Apply Teardrops to All Critical Junctions: Focus on vias, through-hole pads, and narrow traces that are most susceptible to stress.
Inspect and Fine-Tune: While automated tools are convenient, they may sometimes create excessive or overlapping teardrops. A final manual review ensures that the design is clean, functional, and optimized for performance.
Final Thoughts
Teardrops may seem like a small design detail, but their impact on PCB reliability and performance is substantial. By reinforcing key junctions, teardrops help prevent manufacturing defects, reduce mechanical stress, and improve signal integrity—ensuring your PCBs function flawlessly in demanding applications.
At CEN PCBA, we are committed to providing high-quality PCB assembly services with advanced design practices, including the strategic use of teardrops, to ensure the long-term success of your electronic products. Whether you’re designing for high-speed circuits, rugged environments, or compact layouts, integrating teardrops into your PCB designs is an effective way to enhance the durability and performance of your products.
